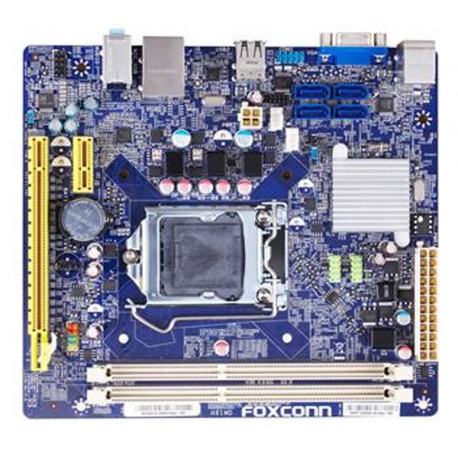

לוח אם פוקסקון Foxconn H61 M 1155

No USB 3
No SATA 3
Foxconn H61 M 1155Processor Supports LGA1155 for Intel Ivybridge/Sandybridge CPUProcessor Supports LGA1155 for Intel Ivybridge/Sandybridge CPU
Support CPU TDP 95W
Support 22/32nm CPU
Chipset Intel® H61 chipset ,HD Graphics Support
Front Side Bus
Memory Dual channel DDR3 1600(IVB)/1333/1066 x 4 DIMMs, Max. 16GB**
VGA on Die
Expansion Slots 1* PCIe3.0(IVB)/2.0 x16
1* PCIe x1
2* PCI
IDE N/A
Serial ATA(SATA)/RAID 4* SATA II ; 2* SATAIII
Audio 5.1 channel HDA
LAN Gigabit LAN
IEEE1394 N/A
Back Panel I/O Ports 1x PS/2 KB/MS port.
1x DVI-D port
1x VGA port
1x HDMI port
1x RJ45 Lan port
1x audio jack supports 3 jacks.
2x USB3.0 ports
4x USB 2.0 ports.
(The IO placement only for refernece)
Internal I/O Connectors 1x ATX 24-Pin power connector
1x 4-pin ATX 12V power connector
1x 4-pin CPU /1x 4-pin System FAN
1x Front pannel header
1x Front Audio header
1x S/PDIF out header
1x C
